Name: Von Duprin 6225 24V US4 DS Electric Strike Satin Brass
SKU: 6225 24V US4 DS
Availability: InStock

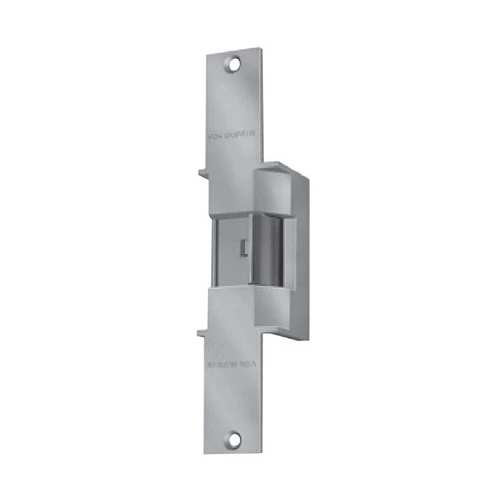

Von Duprin 6225 24V US4 DS Electric Strike Satin Brass

$95.99

SKU: 6225 24V US4 DS Category: Door and Window Security Hardware Tag: Von Duprin

Quality that lasts, prices that don't.
Safe Transactions, Always
Your needs, our top priority.
Your Security is Our Promise

Electric Strike, for Mortise or Cylindrical Locks, 24VDC, Fail Secure, Dual Monitor Switch, Satin Brass

The Von Duprin 6200 Series is a heavy duty, stainless steel electric strike that is UL1034 listed and meets ANSI/BHMA Grade 1 and designed to withstand abuse. The 6225 is designed for mortise locks witout a deadbolt and cylindrical locks, to be mounted in an active leaf of a pair of doors.

Designed for use with a variety of mortise or cylindrical locksets, as well as mortise exit devices.

The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse.

Configuration	Centered
Faceplate Size	9 In. X 1-3/8 In.
Base Material	Brass
Product Width	2.063"
Product Length	9"
Product Height	1.5"
Package Qty	1
Operating Voltage	24VDC
Keeper Size	3/4 In.
Frame Depth	1-5/8 In.
Frame Application	Metal or Aluminum
Faceplate Shape	Flat Face, Square Corners
Use With	Cylindrical and Mortise Locks
ANSI Number	0
Amp Draw	330mA
Package Width	5.875"
Package Volume	161.9296875
Package Length	10.5"
Package Height	2.625"
Function	Electrically Unlocked (Fail Secure)
Color Code	606/US4
Color	Satin Brass
Switch Type	DS
