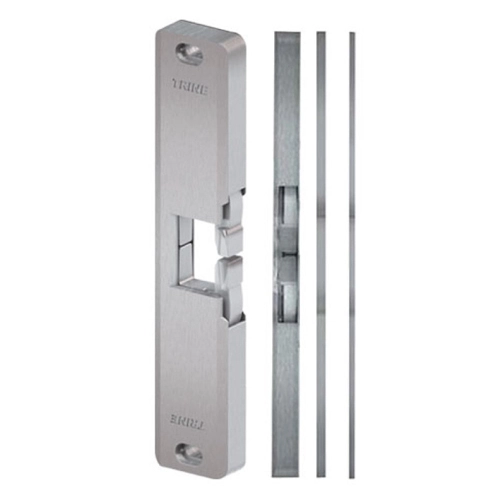

Trine 4850-32D 4850 1/2″ Electric Strike For Surface Mounted Rim Exit Devices, Satin Stainless Steel

The most flexible electric strike for use with surface mounted rim exit devices with up to 1″ throw (6 different thicknesses altogether). US32D Satin Stainless Steel finish.
48501/2″ Surface mounted strike for Rim Panic Devices.

The most flexible electric strike for use with surface mounted rim exit devices with up to 1″ (6 different thicknesses altogether).

Need a fire rated surface mount strike you can install every day” Use the 4800F

Features:

• 1/2″ thick Surface Mount that comes with a 1/4″ and now with two (2) 1/16″ Spacers (replaces the 1/8″ spacer) — the most versatile rim panic strike NOW provides the flexibility of 6 different sizes!

• Cavity is completely open — which means the 4850 allows for an incremental depth up to a 1″ throw — competitor backplates do not allow for this versatility.

• Built-in electronics automatically allow 11 thru 28 DC Voltage input — with surge and kickback protection.

• Comes with Trines Patented 6-Pin Anchoring System.

• Contains a one piece locking mechanism with one Solenoid — less parts mean less problems.

• Fail-safe/Fail-secure (field selectable).

• BHMA Grade 1 Electric Strike — 1,000,000+ Life cycles — 1,500+ lbs. Holding Force.

• No cutting or worrying about voltage means you are always prepared.

• Low Current Draw Available 4850PoE for 12DC and 4850LCD for 24DC.

• For a fire rated rim panic strike use the 4800F.

Electrical Characteristics:

• Voltage (DC Only) – 12DC
• Pull In/Holding Current/Amps – 0.500 / 0.178
• Duty – Intm./Cont.
• Sound – Silent

• Voltage (DC Only) – 16DC
• Pull In/Holding Current/Amps – 0.385 / 0.131
• Duty – Intm./Cont.
• Sound – Silent

• Voltage (DC Only) – 24DC
• Pull In/Holding Current/Amps – 0.255 / 0.084
• Duty – Intm./Cont.
• Sound – Silent

Available Finishes: 4850-32D:

• Satin Stainless Steel – BHMA630

4850-US3:

• Bright Brass — BHMA605

4850-10:

• Satin Bronze — BHMA612

4850-DKBZ:

• Dark Bronze Powder Coat

4850-US4:

• Satin Brass — BHMA606

4850-32:

• Stainless Steel — BHMA651

4850-BLK:

• Black Powder Coat Black Powder Coat *NEW*
