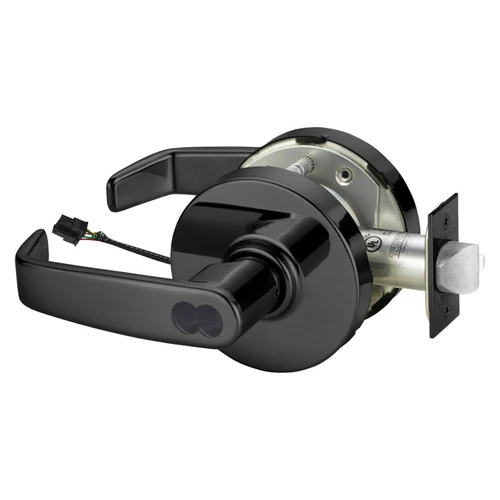

Name: Sargent 2870-10G71-12V LL 20D Electric Cylindrical Lock Dark Oxidized Statuary Bronze Clear Coated
SKU: 2870-10G71-12V LL 20D
Availability: InStock

Sargent 2870-10G71-12V LL 20D Electric Cylindrical Lock Dark Oxidized Statuary Bronze Clear Coated

$95.99

SKU: 2870-10G71-12V LL 20D Category: Door and Window Security Hardware Tag: Sargent

Quality that lasts, prices that don't.
Safe Transactions, Always
Your needs, our top priority.
Your Security is Our Promise

Electrified Cylindrical Lock, Fail Secure, 12V, LL Design, SFIC Prep, Less Core, Statuary Bronze Dark Powder Coat

The Sargent 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by five times the ANSI 156.2 Series 4000 Grade 1 standards. At over 4 million cycles, the 10 Line beats the competitor by 30%. As for abusive force, this lock endures more than two times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.

The 10 Line is the standard for institutional applications.

A heavy duty electrified cylindrical key-in-lever handle lockset exceeds by nine times the Grade 1 standards. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.

Package Length	8.25"
Hand	Non Handed
Operating Voltage	12VDC
Latch Backset Dim	2-3/4"
Strike Width	1-1/4"
Special Marks	Small format interchangeable core, Fire rated 3 Hours {A}
Fire Rated	3 Hours {A}
Grade	Grade 1
Latch Type	Dead Latch (Guarded)
Lock Face Size	2-1/4" x 1-1/8"
Function	71-Electromechanical Fail Secure
Case Width	15"
Color	Dark Oxidized Statuary Bronze Clear Coated
Amp Draw	500mA
Latch Number	10-3192
Package Volume	249.8203125
Cylinder Type	SFIC Prep Less Core
Case Length	20.75"
Power	Hard Wired
Strike Type	ASA
Lever/Knob Design	L – Lever
Strike Height	4-7/8"
Base Material	Bronze
Rose/Escutcheon Design	L – Rose
BAA Qualified	Yes
Origin	USA
Color Code	624/US20A/US20D
Package Qty	1
Case Volume	2801.25
Bolt Protection	1/2"
Package Width	7.125"
Case Height	9"
Door Thickness	1-3/4" to 2"
Screws	Combination
Package Height	4.25"
Strike Number	808
