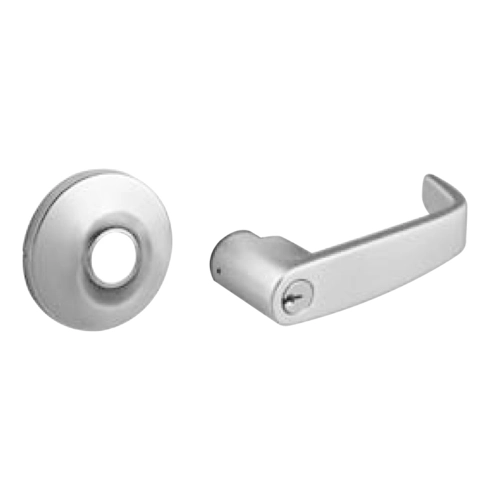

Classroom Security/Public Entrance, Grade 1, Cylindrical Lever Lock, LL Design, LFIC Prep, Less Core, Satin Chrome
The SARGENT 10-Line series boasts heavy-duty cylindrical key-in-lever handle locksets which exceed (by nine times) the ANSI 156.2 Series 4000 Grade 1 standards, at over 9 million cycles. These locks endure more than 1.5 times the abusive force standard without allowing entry. The 10-Line series is designed to conform to national and state fire and handicapped requirements.
Heavy duty cylindrical key-in-lever handle locksets.
A heavy duty cylindrical key-in-lever handle lockset that exceeds, by nine times, the Grade 1 standards. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.
| Finish | Satin Chrome |
|---|---|
| Strike Number | 808 |
| Lever/Knob Design | L – Lever |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Package Qty | 1 |
| Rose/Escutcheon Design | L – Rose |
| Screws | Combination |
| Special Marks | Full size/large format interchangeable core, Fire rated 3 Hours {A} |
| Strike Height | 4-7/8" |
| Strike Type | ASA |
| Latch Number | 10-3192 |
| Strike Width | 1-1/4" |
| Base Material | Brass or Bronze |
| Grade | Grade 1 |
| Thickness | 1-3/4" – 2" |
| Application | Heavy Duty |
| Hand | Not Handed |
| Color Code | 626/US26D |
| Latch Type | Dead Latch (Guarded) |
| Latch Backset Dim | 2-3/4" |
| Function | 16-Classroom Security Apartment Exit Privacy |
| Package Height | 4.25" |
| Design | L Lever and L Rose |
| Strike | ASA Strike |
| Backset | 2-3/4" Backset |
| Cylinder Type | Sargent LFIC Less Core |
| Fire Rated | 3 Hours {A} |
| Origin | USA |
| BAA Qualified | Yes |
| Package Length | 8.25" |
| Dust Box | None |
| Package Volume | 249.8203125 |
| Package Width | 7.125" |
| ANSI Function | F88 – Entry/Restroom |
| Bolt Protection | 1/2" |
| Case Height | 9" |
| Case Volume | 2801.25 |
| Case Width | 15" |
| Case Length | 20.75" |
