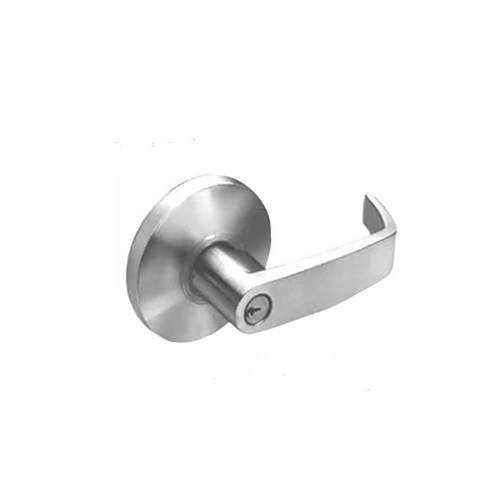

Sargent 28-65U65 KL 26D 6500 Series, U65 Privacy Lever Lock, Satin Chrome

Privacy Function, K Rose, L Lever, 2-3/4″ Backset, 808 Strike, US26D Satin Chrome Finish
6500 SeriesCylindrical Lever Lock

Designed for increased usability, the 6500 Line standard duty key-in-lever lock exceeds ANSI/BHMA Grade 2 standards. It installs easily and is available in eight functions and six different finishes to match existing facility aesthetics.

A standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2, Series 4000 and Grade 2

Certification Compliance: ANSI/BHMA:

• Meets ANSI A156.2 Series 4000 — Grade 2

UL:

• UL listed to U.S.A. and Canadian safety standards Listed for 3 Hour Doors

Positive Pressure:

• Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies

ADA:

• All levers conform to ADA requirement for barrier-free accessibility

California Code:

• Levers conform to California Administrative Code Title 19 and 24

Hurricane Code:

• All individual components of a total door opening are required to comply with each code. Refer to the SARGENT Website (www.sargentlock.com) for specific code compliance listings for both the lock hardware and other door components

Specifications: For Doors:

• 1-3/8″ (35mm) to 1-3/4″ (44mm) only

Backset:

• 2-3/4″ (70mm) standard

Cylindrical Housing:

• Steel zinc dichromate finish

Front:

• Wrought brass and stainless steel 2-1/4″ (57mm) x 1-1/8″ (29mm)

Strike:

• 800 Curved Lip, Brass or Stainless Steel Standard

Hand:

• Universal, non-handed

Latch:

• Brass 1/2″ (13mm) throw

Keys:

• Two, nickel silver

Cylinder:

• Brass, 6- pin, LA keyway standard

Finishes:

• 3, 4, 10, 10B, 10BE, 26, 26D

Door Prep:

• ANSI A115.2 (161) Modified

Minimum Stile:

• 4-1/2″ (114mm)
