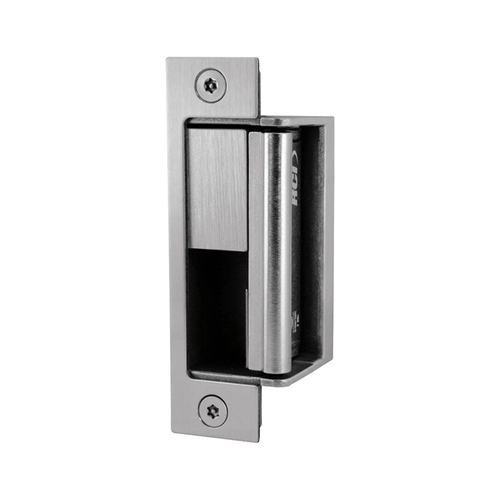

Name: RCI F2164 32D Electric Strike Satin Stainless Steel
SKU: F2164 32D
Availability: InStock

RCI F2164 32D Electric Strike Satin Stainless Steel

$96.99

SKU: F2164 32D Category: Door and Window Security Hardware Tag: RCI

Quality that lasts, prices that don't.
Safe Transactions, Always
Your needs, our top priority.
Your Security is Our Promise

Fire Rated Electric Strike, 4-7/8 In. Faceplate, for Cylindrical and Mortise Locks with or without Deadbolt, 12/24 VDC, 12-24 VAC, Fail Secure, Satin Stainless Steel

2 Series All-In-One Strikes versatile design features adjustable deadbolt keeper and deadlatch ramp allowing it to work with most locks . Accommodates 1/2″ (12 .7mm) to 3/4″ (19mm) latch projection. Adjustable deadbolt keeper and deadlatch ramp. Includes two keeper shims – 1/16″ (1 .5mm) and 1/8″ (3mm) -for horizontal adjustment for misaligned frames (unique sliding design). UL 294 Listed for Access Control Unit Accessory (6th Edition) UL 1034 burglary-resistant. Listed CAN/ULC S104 & UL 10C, 3-hour fire-rating Listed (F2164 only)

Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments

For use in: Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments

Use With	Cylindrical Locks, Mortise Exit and Latch Locks
Color	Satin Stainless Steel
Color Code	630/US32D
Function	Electrically Unlocked (Fail Secure)
Fire Rated	3 Hours {A}
Package Volume	0
Amp Draw	.375 Amps at 12VDC, .19 Amps at 24VDC, .280-.565 Amps at 12-24VAC
Faceplate Shape	Flat Face, Square Corners
Faceplate Size	4-7/8 In. X 1-1/4 In.
Frame Application	Metal
Operating Voltage	12VACDC/24VACDC
Package Qty	1
Special Marks	Fire rated 3 Hours {A}
Base Material	Stainless Steel
Switch Type	None
