Name: CR Laurence CRL PHE7LDU Black Bronze Anodized European Patch Door Kit For Double Doors For Use With Fixed Transom And One Sidelite - With Lock
SKU: PHE7LDU
Availability: InStock

CR Laurence CRL PHE7LDU Black Bronze Anodized European Patch Door Kit For Double Doors For Use With Fixed Transom And One Sidelite - With Lock

$95.99

SKU: PHE7LDU Category: Commercial and Residential Door Hardware Tag: CR Laurence

Quality that lasts, prices that don't.
Safe Transactions, Always
Your needs, our top priority.
Your Security is Our Promise

CRL PHE7 European Double Door Kits come with all the hardware to complete a pair of free-swinging doors with fixed transom and sidelite, (except glass and additional supports for the fixed transom and sidelite). Pivot setback is 2-9/16″ (65 mm). Floor closer with tapered spindle (ordered separately) may be used with this Kit.

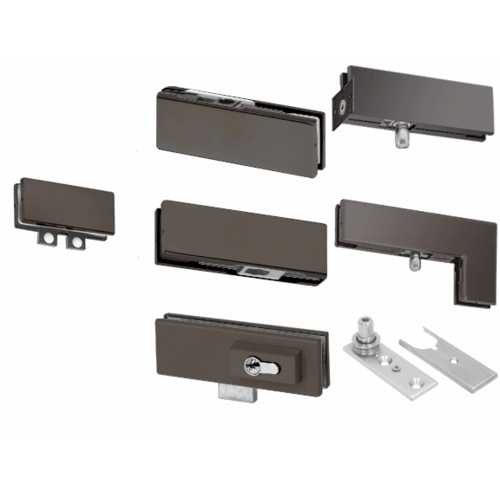

Kit Contains:

1 – PH34 Wall Mount Transom Patch

1 – PH40 Sidelite Mount Transom Patch

2 – PH21A Top Door Patches

2 – PH11C Bottom Door Patches

1 – PH70 Transom Door Stop

2 – 1NT403 Bottom Pivots

Gaskets for 3/8″ or 1/2″ (10 or 12 mm) tempered glass. (Holes and notches are required in the glass.)
Kits with locks also come with two each Cat. No. EUR205 patch locks. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Lock	With Lock
Finish	Black Bronze Anodized
Pivot Backset (Inches)	2 9/16
Configuration	Pair With Transom-Sidelite
Glazing Thickness	3/8, 1/2
Door Type	F Style Glass Door
Finish/Color	Black Bronze Anodized
