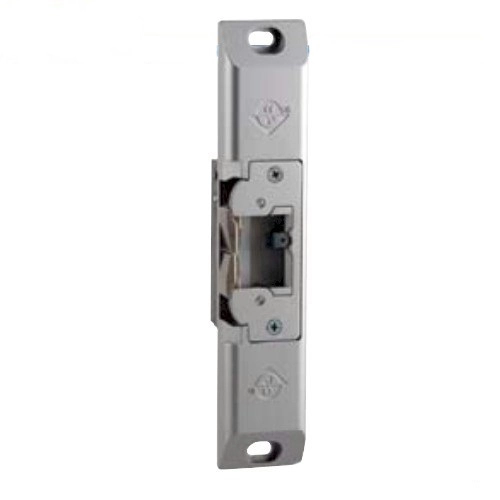

Adams Rite 74R1-130 74R1 Ultraline Electric Strike For Rim Exit Devices, Satin Aluminum

For use with 3/4″ latchbolt, 130 To Match 628 Clear Anodized
UltraLine® 74R1Electric Strikes for Rim Exit Devices

74R1 Electric Strike is designed for rim exit devices with 3/4″ (19.1 mm) Pullman latchbolts. For use in aluminum, hollow metal or wood applications.

Function
These non-handed strikes feature an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. The strikes release electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device.

Certifications:

• UL 1034

• UL 294

• ULC-S319

• ANSI/BHMA A156.18

• ANSI/BHMA A156.31 Electric Strikes and Frame Mounted Actuators, Grade 1

Features: Case:

• 1-13/32″ x 3-3/8″ x 1-1/16″ deep
• (35.7 mm x 85.7 mm x 27 mm deep)

Strike Opening:

• Bolt retaining keeper is stainless steel.
• 5/8″ x 1-7/16″ x 9/16″ deep
• (15.9 mm x 36.5 mm x 14.3 mm deep)
• Strike accepts Pullman latch of exit devices without deadlocking bolts.

Faceplate:

• Not separate
• 1-3/4″ x 9 x 11/16″
• (44.5 mm x 228.6 mm x 17.5 mm)

Latchbolt Projection:

• 3/4″ (19.1 mm)

Standard Package:

• Individually boxed with mounting plate shims, mounting screws, and installation instructions.

Shipping Weight:

• 2 lbs (0.91 kg)

Electrical: Voltage:

• Current Draw:
• .44A at 12 VDC
• .46A at 16 VDC*
• .23A at 24 VDC
• *Requires 16 DC adapter (P/N VA7400-16VDC)

Fail Safe | Fail Secure:

• Field selectable fail safe/fail secure

Options:

• Available with two Form ‘C’ monitoring switches to indicate when the latchbolt is engaged in the strike jaws and a locked/unlocked solenoid status.

• ELX-ElectroLynx® Adapter: Connects Adams Rite electrified products to ElectroLynx system

• 16 VDC Adapter: VA7400-16VDC required when using 16 VDC power
